To understand how to navigate through the application and collect data, the user can follow these workflow steps:

(1) Home Tab

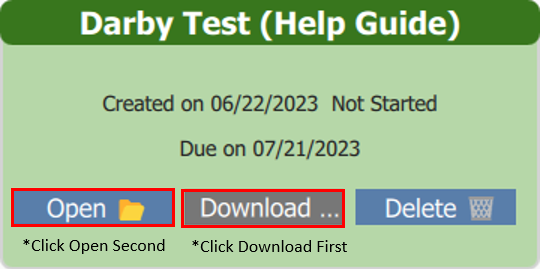

Click the Download button on the desired Work Package. If it successfully downloads, click the Open button. This will fill the Segments Tab with data and redirect the user to it.

(2) Segments Tab

Click the desired segment in the table or directly on the map. A map pop-up will appear over the selected segment. Click this pop-up to fill the remaining tabs with data. This selection will automatically redirect the user to the Center Tab, but they can click on any of the other tabs to edit and add data there (Left/Right, Left, or Right).

(3) Left/Right, Center, Left, and Right Tab

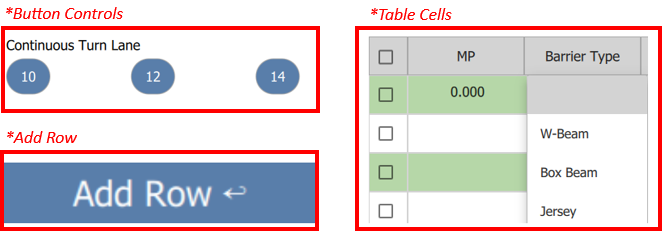

Click "Add Row" in the top right of the screen to add a data entry. Then, use the button controls or click into a cell on the added row in the tables to enter data with the available picklists and textboxes.

(4) Manage Package Tab

Click the "Complete" link on the row containing the segment with a complete data set. After clicking this link, it will change to say, "Validate." Once the segment data is validated, the row will display the "Submit" link. All three statuses are shown in the image below.
