The Right Tab hosts controls which allow users to collect data for segments in a work package. Specifically, this tab allows the user to collect data solely from the right side of a road segment.

Setup

Similar to the Left/Right Tab, the Right Tab is split down the middle; however, only the controls on the right side of the screen are made available to the user on the Right Tab. The left side will be viewable but muted in color. By default, the tab will display the relevant event controls at the top of the right side followed by a table. The event controls can be hidden by selecting the button; while this button is muted in color given its placement on the left side of the screen, it is still usable. By selecting this button, the layout of the tab will change to show only the table. The images below show the default and table-only layouts. The button that changes the layout is displayed in a red box in these images.

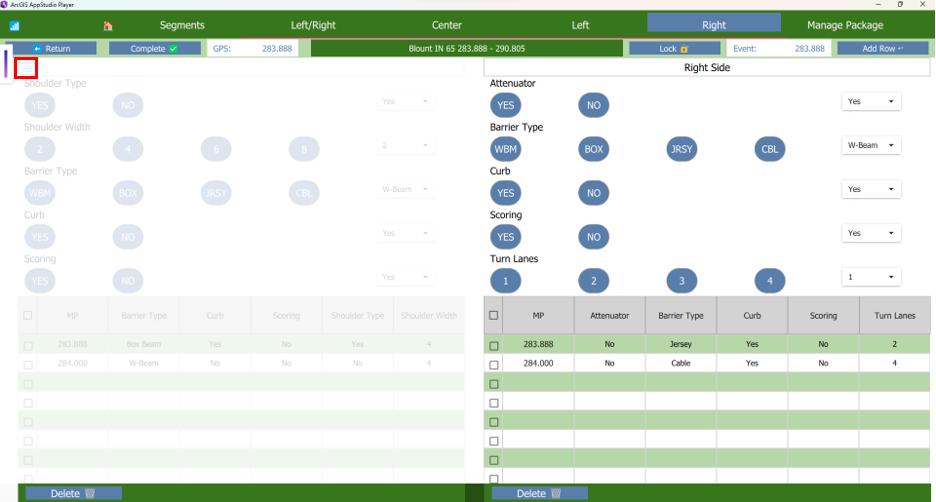

Default

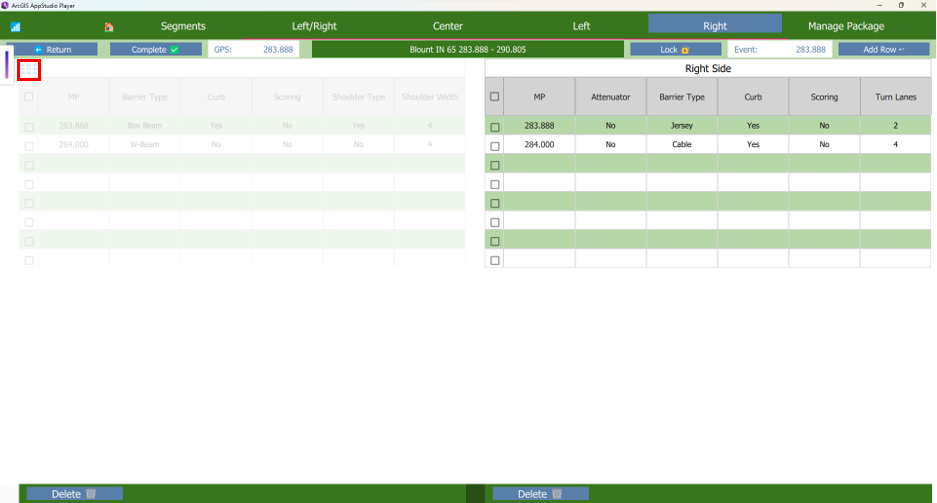

Table Only
