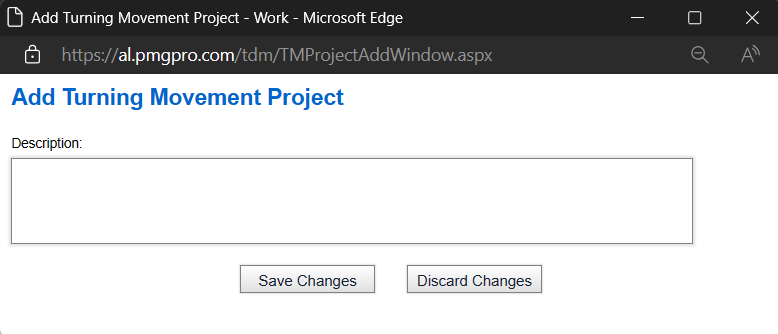

The "Add TM Project" interface allows the user to create a new Turning Movement (TM). When the user first enters this interface, they can simply fill a Description box for the new TM project.

Once a description is entered and the "Save Changes" button is selected, a pop-up will appear that confirms the TM project's creation. Then, the user will be asked if they would like to add Turning Movements to this project.

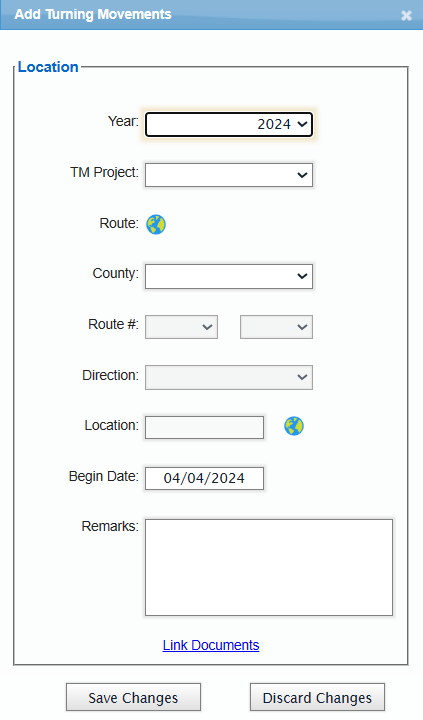

If the "OK" button is selected, the user will land on the "Add Turning Movements" pop-up. On this interface, the user can add location information to the newly created TM project. This information can be added manually (textboxes/picklists) or actively (icons/map). If the icons are used, the user will be able to click on an area on the map, and the system will fill the fields with the related data. For either information-entering method, the user can click the "Save Changes" button once the fields are satisfactorily filled.

The system will display a confirmation of the TM's creation and show its new ID (ex. TM001). Then, the user will be asked if they would like to add counters to the TM project.

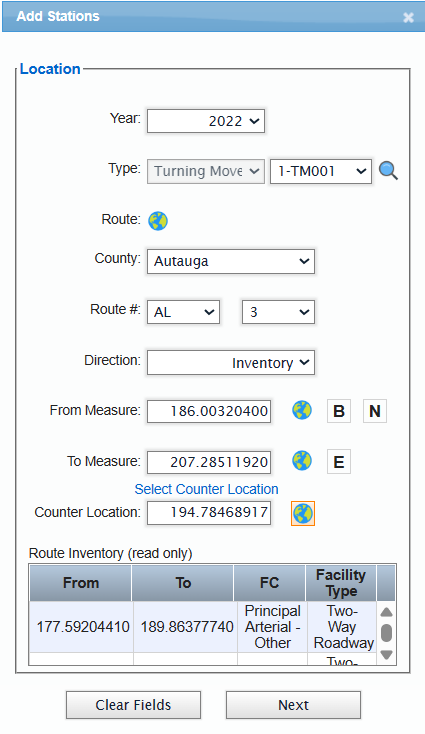

If the "OK" button is selected, the user will land on the "Add Stations" pop-up. As with the "Add Turning Movements" pop-up, this interface allows users to manually (textboxes/picklists) or actively (icons/map) enter information. One additional tool is shown here, the magnifying glass icon (), which allows the user to search for an available Turning Movement to fill the picklist. Once this screen has data, the "Next" button can be selected.

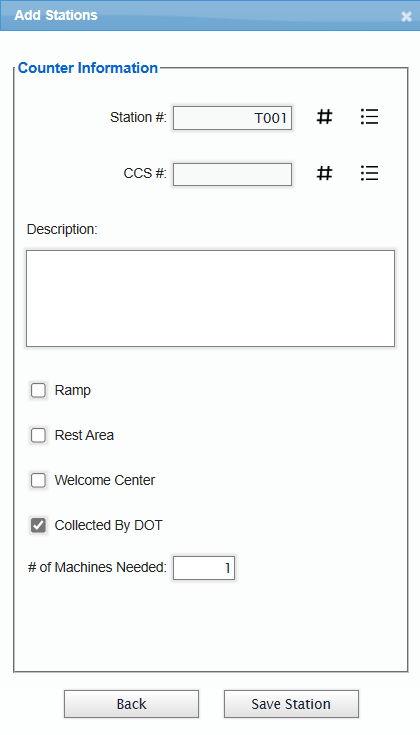

The "Next" button simply moves the user to a second screen on the "Add Stations" interface. These fields are not required, but they can be optionally filled to specify the counters further. To save the counter information, the user can select "Save Station."

Then, the save will be confirmed to the user. After clicking "OK," another message will relay that the end of the route has been reached. This TM project will now be available on the other interfaces.
