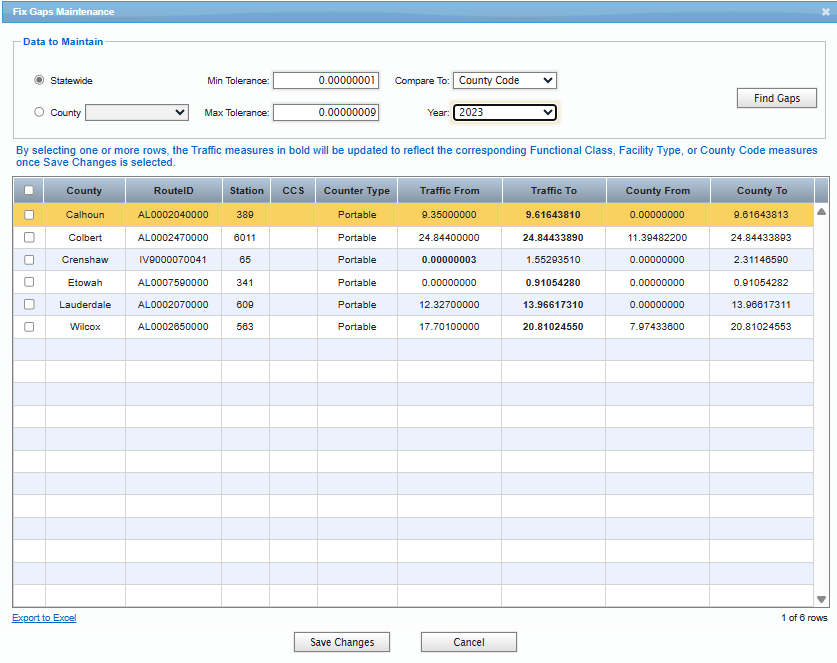

The Find Gaps interface allows the user to find all gaps between the To and From measures for all Traffic segments and the corresponding County Code, Facility Type, or Functional Class features across the entire state or for a specific county. When the user selects the Fix Gaps icon (), this interface will appear:

Filters

To find gaps, the user must first filter the table using these fields: Statewide/County, Minimum (Min) Tolerance, Maximum (Max) Tolerance, Compare To, and Year. The "Compare To" field allows the user to select either County Code, Facility Type, or Functional Class to compare the Traffic segments to. Once all fields have values, the "Find Gaps" button can be selected to display any related gaps on the table.

Table

On the table, the user can view the data and choose to change one or more Traffic records to match the measures of the County Code, Facility Type, or Functional Class. To select these records, the user can click a row's checkbox; multiple checkboxes can be clicked at once. The user may also select the checkbox in the upper left of the column heading row to select all records. Once the user has selected the traffic records to update, they can select the "Save Changes" button to update the measures in the TrafficCounterDetail table. The corresponding geometry for these segments will also be automatically updated.

Other Controls

There are two other controls on this interface:
